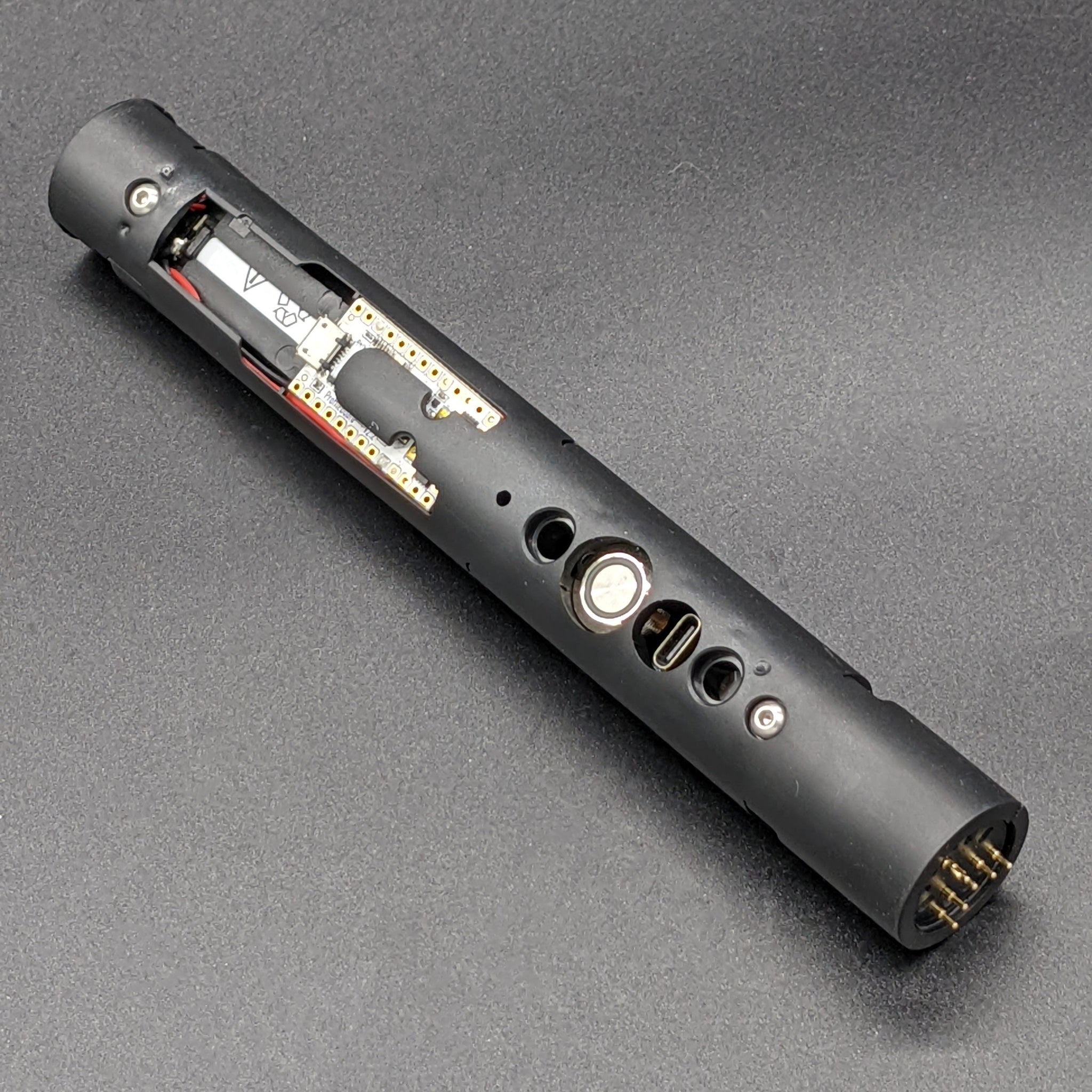

This is the latest Pixel saber core powered by the Proffieboard. We feel this is a large upgrade to our previous offering. If you need this core, then I imagine you already know what this is and what it can do... which is pretty much everything.
This is the second generation Proffie Core which allows easy access to the SD card and Micro USB port. This version uses one button rather than two, preventing accidental font switching and also allows the recharge port to return! You can use this core to convert one of our EFX sabers into a Proffie Pixel saber.
We were able to reduce the length of this core, so you will no longer need an extension to use it! This means you can install this core into every Crimson Dawn hilt with a recharge port.
This core comes with a PCB protected 18650 Li-ion battery, also known as a "protected cell". Due to the protection PCB, the battery is a tad longer than a normal 18650.
You can get the core by itself, or bundled with a blade, up to you!
| Product Specifications | |
| Imperial | |
| Hardware Specs: | |
| Overall Length (in): | 7.48 |
| Weight (oz): | 3.91 |
| Outer Diameter (in): | 1.00 |
| Battery Compatibility: | 18654 Button Top |
| Battery Included: | Yes |
| LED Type: | LED Pixel Blade |
| Switch Type: | Backlit Anti-vandal |
| Charging Type: | In-hilt 2.1mm Standard |
| Hardware Notes: | NA |
| Software Specs: | |
| Sound Fonts: | 18 |
| Font List: | Varies |
| Smooth Swing: | Yes |
| Lock Up: | Yes |
| Flash on Clash: | Yes |
| Blaster Deflect: | Yes |
| Blade Effects: | 18 |
| Volume Control: | Muliple, Mute |
| Theatrical Music Tracks: | Multiple |
| Ignition/Retraction: | Multiple |
| Programable: | Fully Configurable |
| Software Notes: | Fonts can be added via SD card, other edits must be made using PC via Ardiuno. Program edits should be made by experienced users only. |
| Metric | |
| Hardware Specs: | |
| Overall Length (mm): | 190 |
| Weight (g): | 111 |
| Outer Diameter (mm): | 25.4 |
| Battery Compatibility: | 18654 Button Top |
| Battery Included: | Yes |
| LED Type: | LED Pixel Blade |
| Switch Type: | Backlit Anti-vandal |
| Charging Type: | In-hilt 2.1mm Standard |
| Hardware Notes: | NA |
| Software Specs: | |
| Sound Fonts: | 18 |
| Font List: | Varies |
| Smooth Swing: | Yes |
| Lock Up: | Yes |
| Flash on Clash: | Yes |
| Blaster Deflect: | Yes |
| Blade Effects: | 18 |
| Volume Control: | Muliple, Mute |
| Theatrical Music Tracks: | Multiple |
| Ignition/Retraction: | Multiple |
| Programable: | Fully Configurable |
| Software Notes: | Fonts can be added via SD card, other edits must be made using PC via Ardiuno. Program edits should be made by experienced users only. |
